Equipment
0.90 in
stroke
0-150 VDC
operating voltage
0-33 in/s
speed across 0-150 V
5.07 in
overall length
The Model 808 Percussion Welder Actuator is a solenoid specifically designed for percussion welding, with a low mass of the moving parts, allowing for the rapid acceleration of the weldment held in the moving wire holder. Rapid acceleration is crucial to producing clean and strong weld joints the instant the two dissimilar metals come into contact. With the operating voltage provided by the 858 Percussion Welder, the 808 Actuator delivers consistent acceleration, which results in a consistent and repeatable welding process, allowing it to form an efficient and crucial tool in production.
Chapter 01 / 03
What is the Percussion Welder Actuator?
The Percussion Welder Actuator is a unique component in the solution to micro welding challenges with its powerful and precise motion. It is designed for precision, reliability, and accuracy, making it the perfect tool for professionals who require accurate microwelds for dissimilar materials with no filler material and instantaneous welding times. The 808 Actuator is designed to be easy to use and maintain, with its simple design and low maintenance requirements.
Chapter 02 / 03
SUPERIOR WELDING QUALITY
Contact us today to learn more about our Percussion Welder System and the wide range of delicate weld applications we cater to.

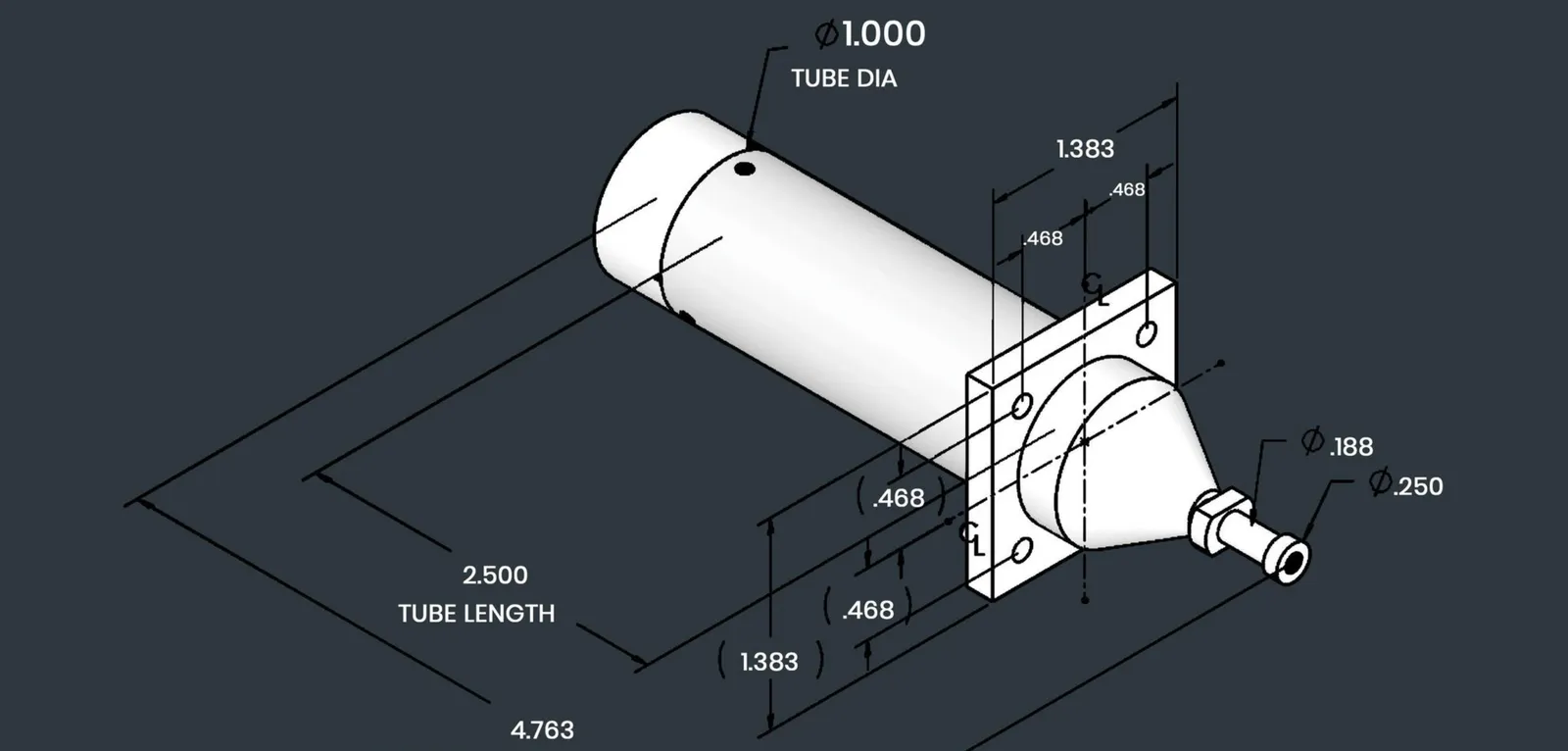

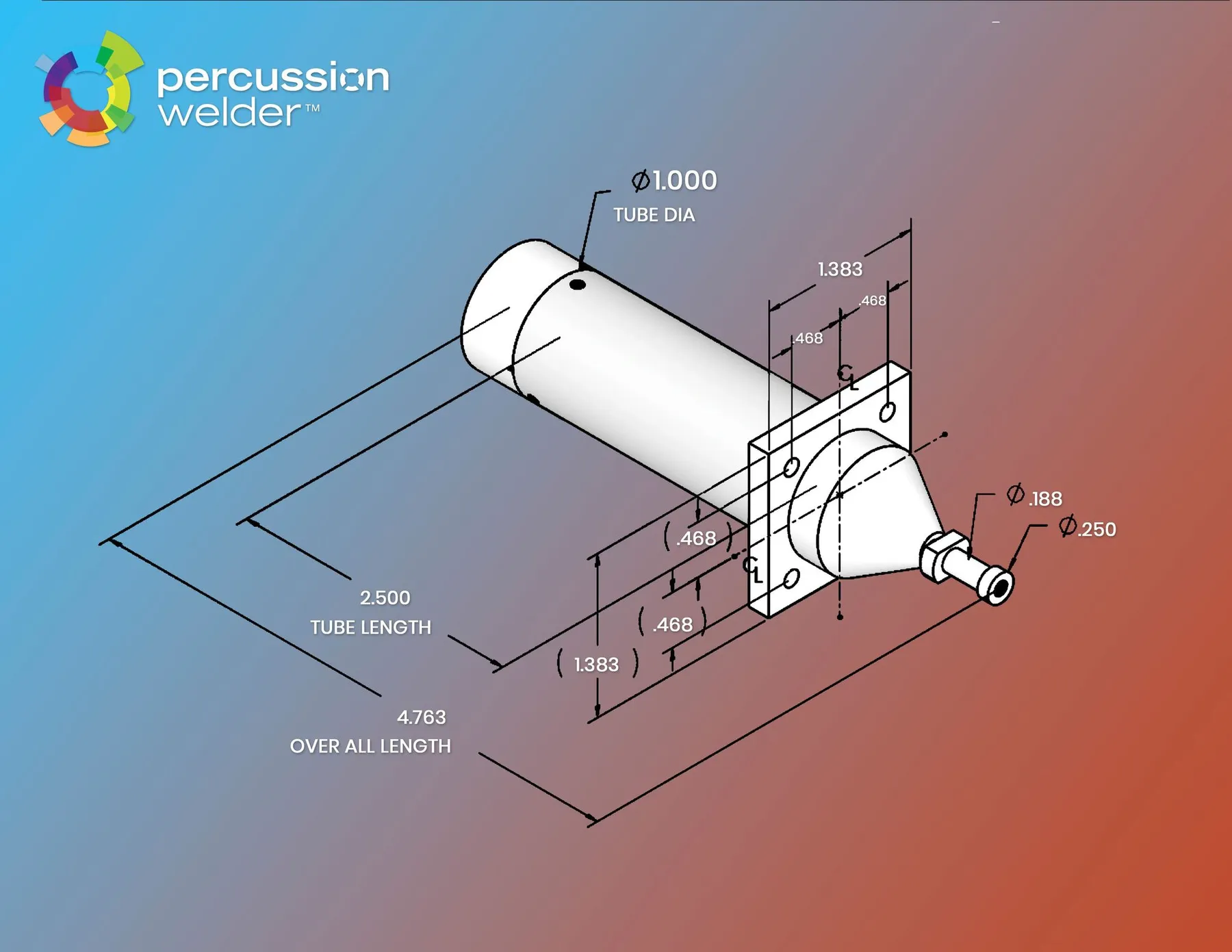

- Overall Length – 5.07”
- Mounting Plate dimensions – 1.38” X 1.38”
- Stroke – 0.90”
- Voltage – 0 to 150 VDC
- Coil Resistance – 2 ohms
- Speed – 0~ 33 inches/second (0~150 Volts)
Gallery

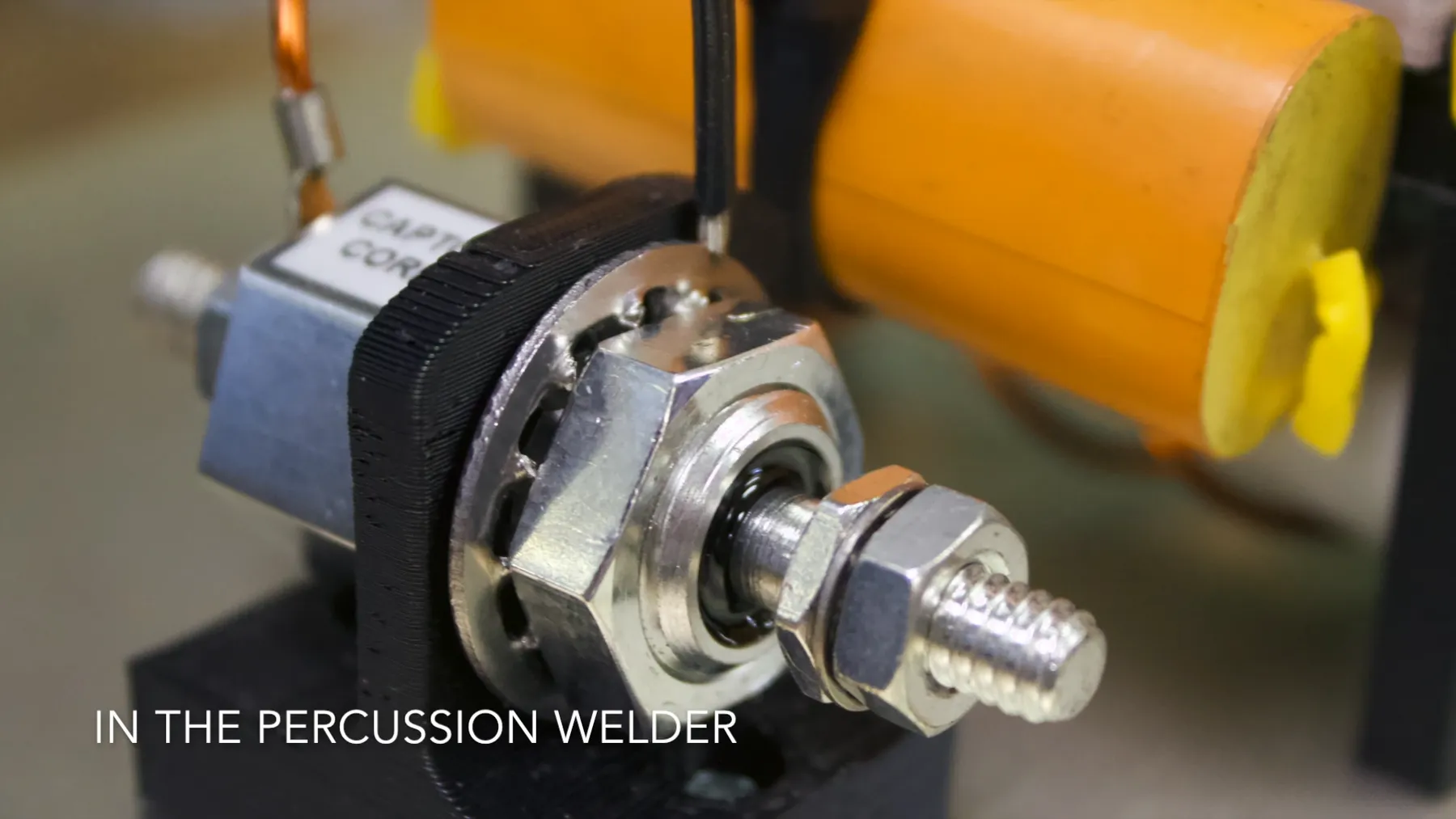

The motion behind the weld

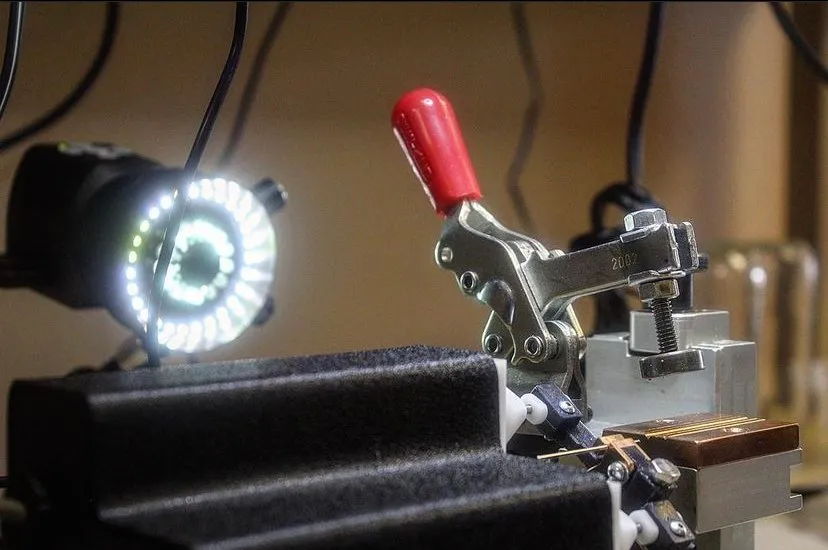

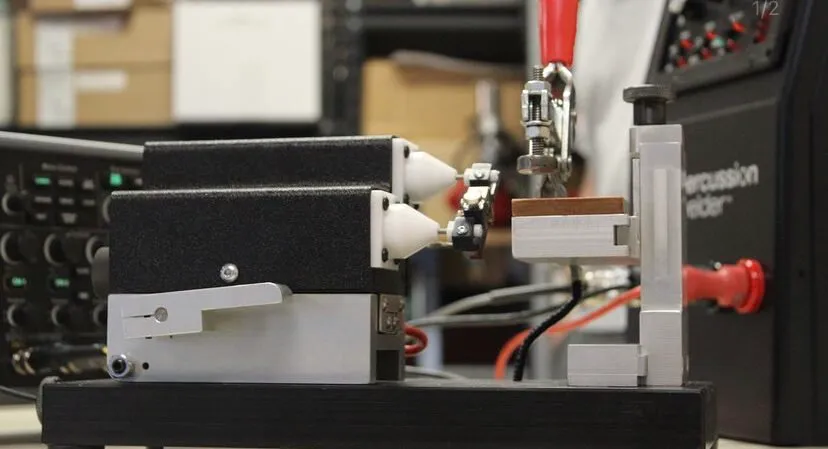

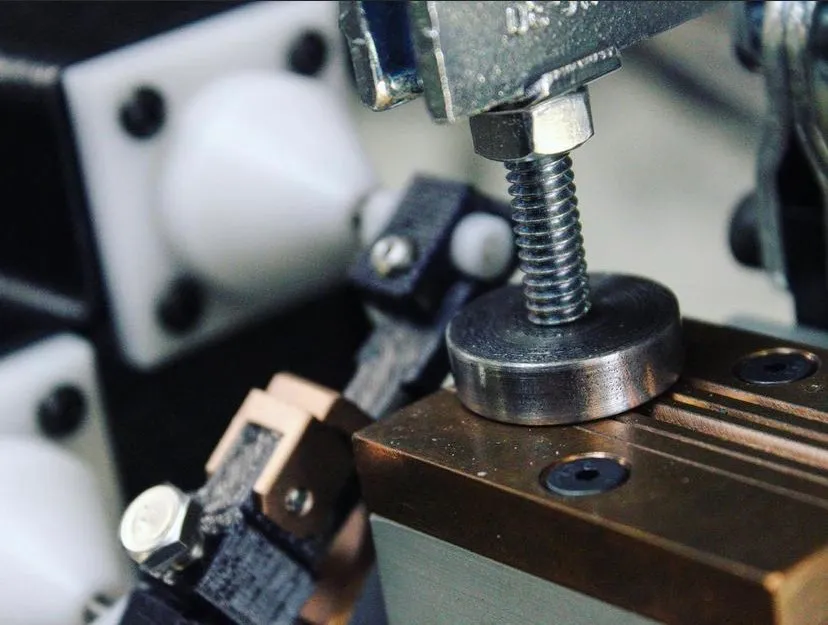

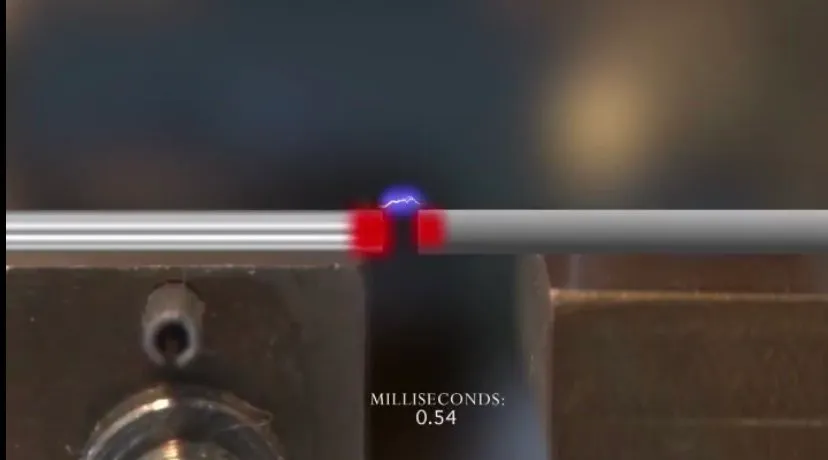

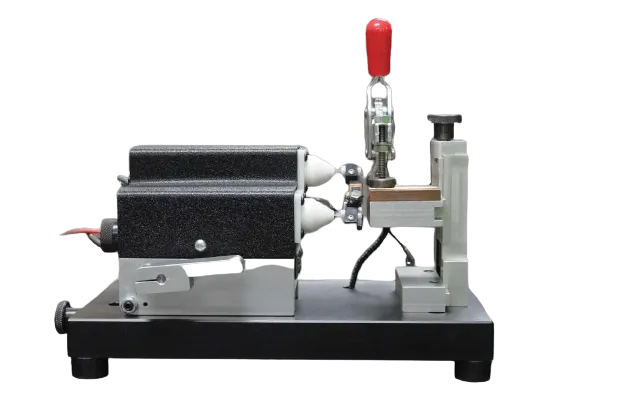

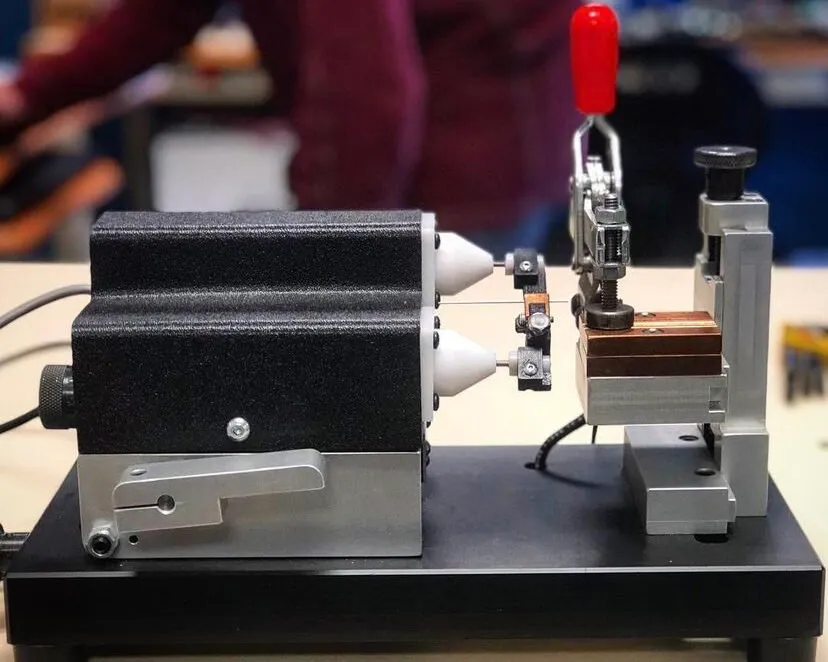

Actuator, fixture and the weld they produce.
Chapter 03 / 03
Operation So Simple And Intuitive, We Can Show You How To Use The Bench Fixture
If you’re like us, sometimes a picture (or video) is worth a thousand words. Watch our video showing you step-by-step how easy Percussion Welder 726 Bench fixture is to operate.
Where to next
726 Bench Fixture

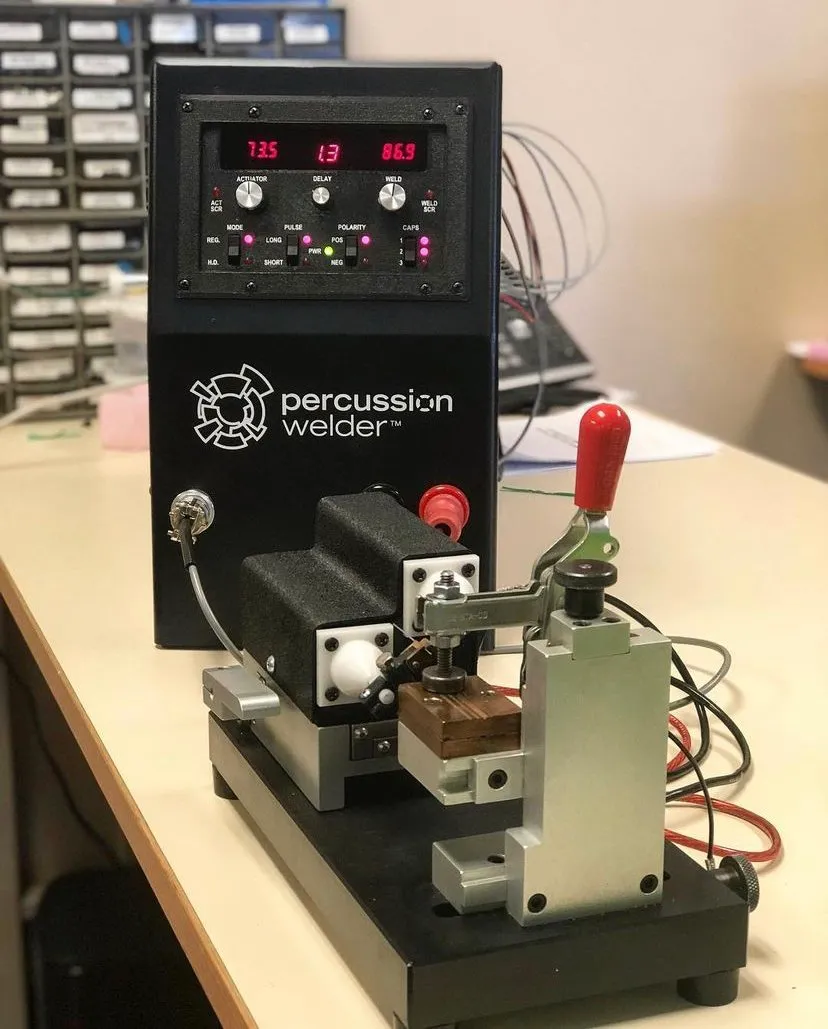

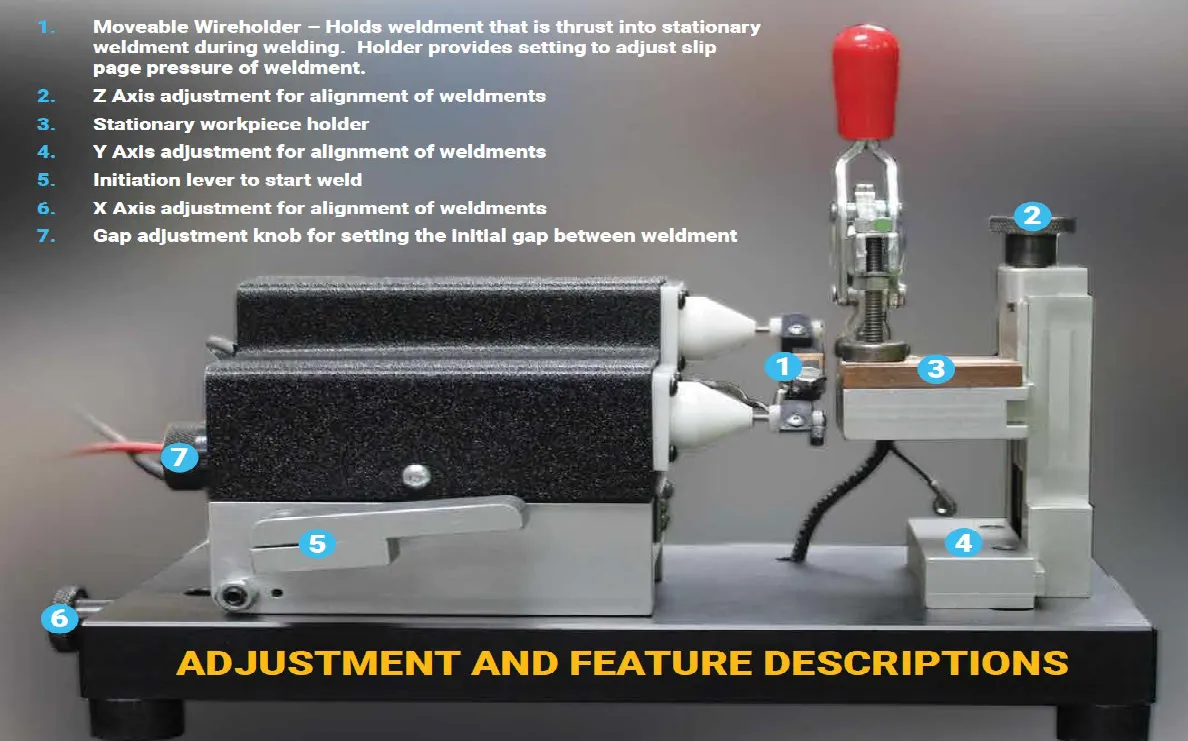

The 726 Bench Fixture is the “weld head” of the MTI Percussion Welder system. When combined with the Model 858 Percussion Welder the system provides everything required for producing consistent, reliable weld joints. Call us on 303-536-7838 for more details.
Open →858 Percussion Welder
The 858 Percussion Welder Front panel makes micro-welding simple with the advanced features any type of micro welding is possible. Call us on 303-536-7838 for more details.
Open →Products
At Percussion Welder, we offer a complete Percussion Welding System to our customer base at MTI MicroWelding to assist with your microjoining needs, including the 858 Percussion Welder, the Percussion Weld Monitor, and the Model 726 Bench Fixture.
Open →FAQ
What is the Model 808 Actuator?
A solenoid designed specifically for percussion welding. The moving parts have low mass, so the weldment held in the moving wire holder accelerates rapidly.
Why does acceleration matter?
Rapid acceleration is what produces a clean, strong joint at the instant the two metals make contact. Consistent acceleration gives a consistent, repeatable welding process.
What are the 808's key dimensions and ratings?
Overall length 5.07 in, mounting plate 1.38 in x 1.38 in, stroke 0.90 in, operating voltage 0 to 150 VDC, coil resistance 2 ohms, speed 0 to 33 in/s across 0 to 150 V.
What drives the actuator?
The operating voltage comes from the 858 Percussion Welder.
How much maintenance does it need?
The 808 is designed to be easy to use and maintain, with a simple design and low maintenance requirements.
Still have a question? Tell us your weld challenge and an engineer will reply.
Start here
Call 303-536-7838 and we will walk through actuator speed and fixture setup for your parts.
Prefer to talk? Book a demo or call 303-536-7838
